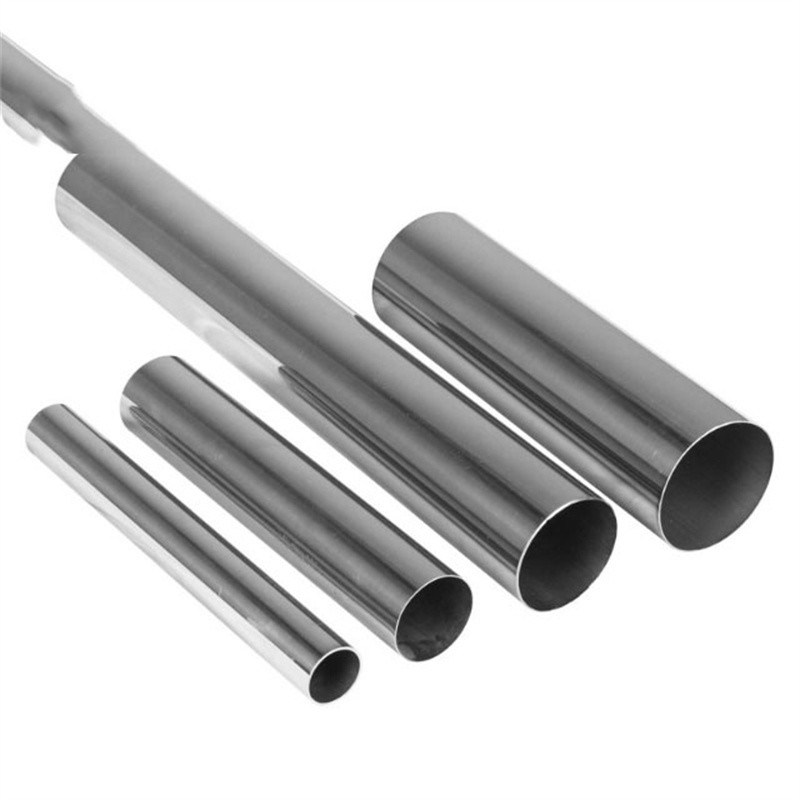

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish

High Light

Hot Rolled Welded Stainless Steel Tube
,
stainless steel round pipe 400 Series
,
Welded Stainless Steel Tube Round
Grade

200/300series
Type

Plate
Tolerance

±1%
Length

3000mm~6000mm Or As Customer Requirment
PRICE TERM

CIF CFR FOB EX-WORK
Surface

Polishing,annealing,pickling,bright
Shape Sections

Round, Square, Rectangular
Finish

2B/No.1/Mirror Finish/Satin Polished
Place of Origin

CHINA
Brand Name

NADONG
Certification

ISG SGS
Model Number

400
Minimum Order Quantity

1 Ton
Price

$1000-$1900
Packaging Details

According to customer needs
Delivery Time

15 working days
Payment Terms

L/C, T/T
Supply Ability

1000 ton per month

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish

Name: Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish
Brand: NADONG
SKU: 400
Price: 1000 USD
Availability: InStock
Rating: 4.9 (178 reviews)

button button

Get Price Contact Now

Wholesale Hot Rolled Stainless Steel Round Welded Pipe 400 Series No.1 Finish

430 ferritic stainless steel is a general-purpose steel with good corrosion resistance. It has better thermal conductivity than austenite, lower thermal expansion coefficient than austenite, heat fatigue resistance, addition of stabilizing element titanium, and better mechanical properties of the weld.

Specfications

product name	Stainless steel pipe
Grade	201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A.440A.440B.440C.904L.2205.2507.2520 ect. Or Customized
Standard	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface	Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish (HL/Brushed),Ti-gold, Glossy matt,dull and so on.
specifications	Outer diameter	6mm-630mm or customized
	Wall thickness	0.1-30mm or customized
	Length	0.3-15.8m or customized
Technique	Cold rolled	welding or customized
	Hot rolled	seamless
Test and Inspection	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Thickness tolerance	±0.05mm

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish 0

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish 1

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish 3

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.

Hot Rolled Welded Stainless Steel Tube Round 400 Series No.1 Finish 5
